| Product Name: | All-in-one machine |
| Function introduction: | Automatic charging, water filling, and sewage drainage |
You can opt for a robotic automation workstation to achieve automated operation of the SOCL cleaning robot.

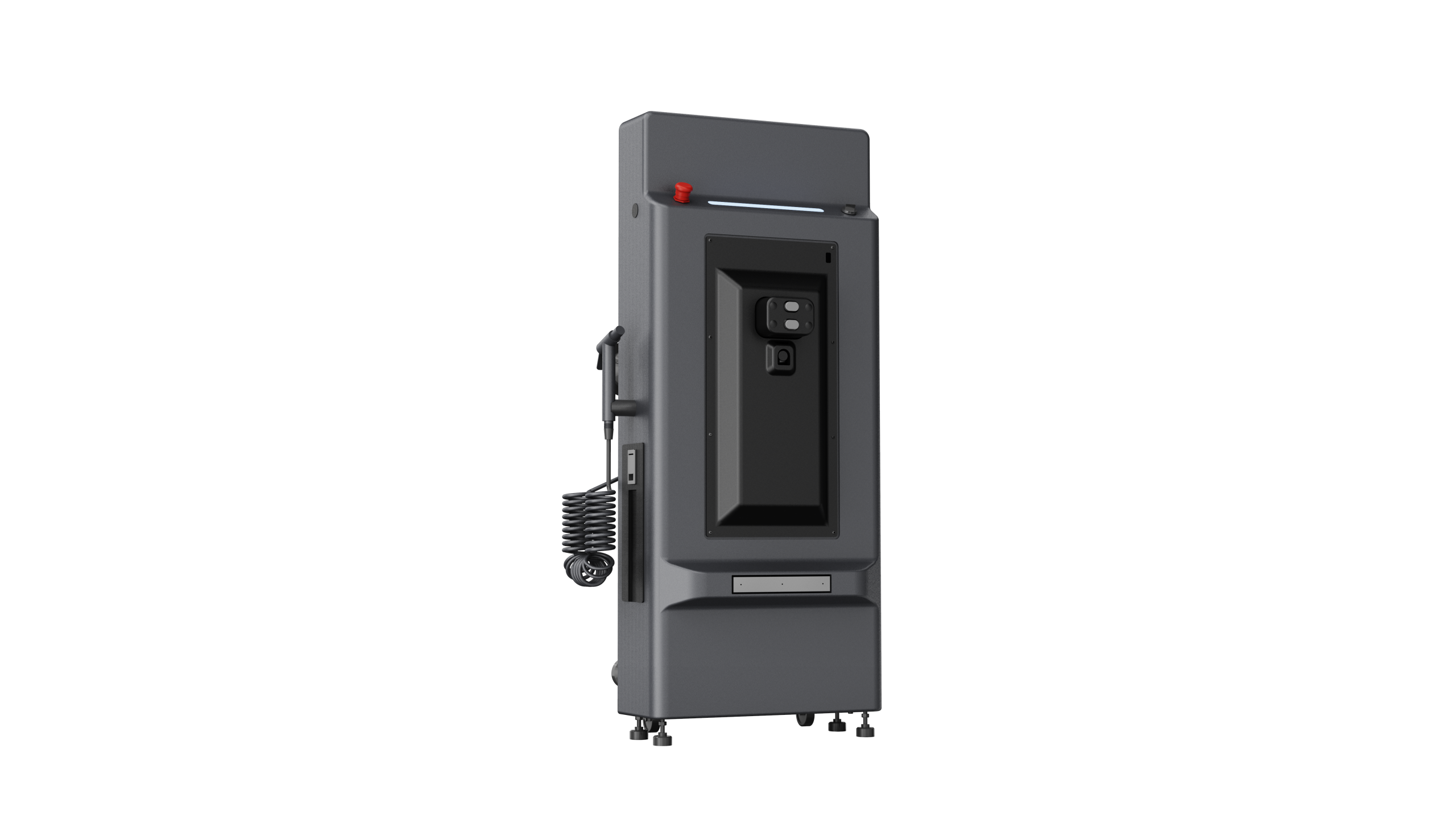

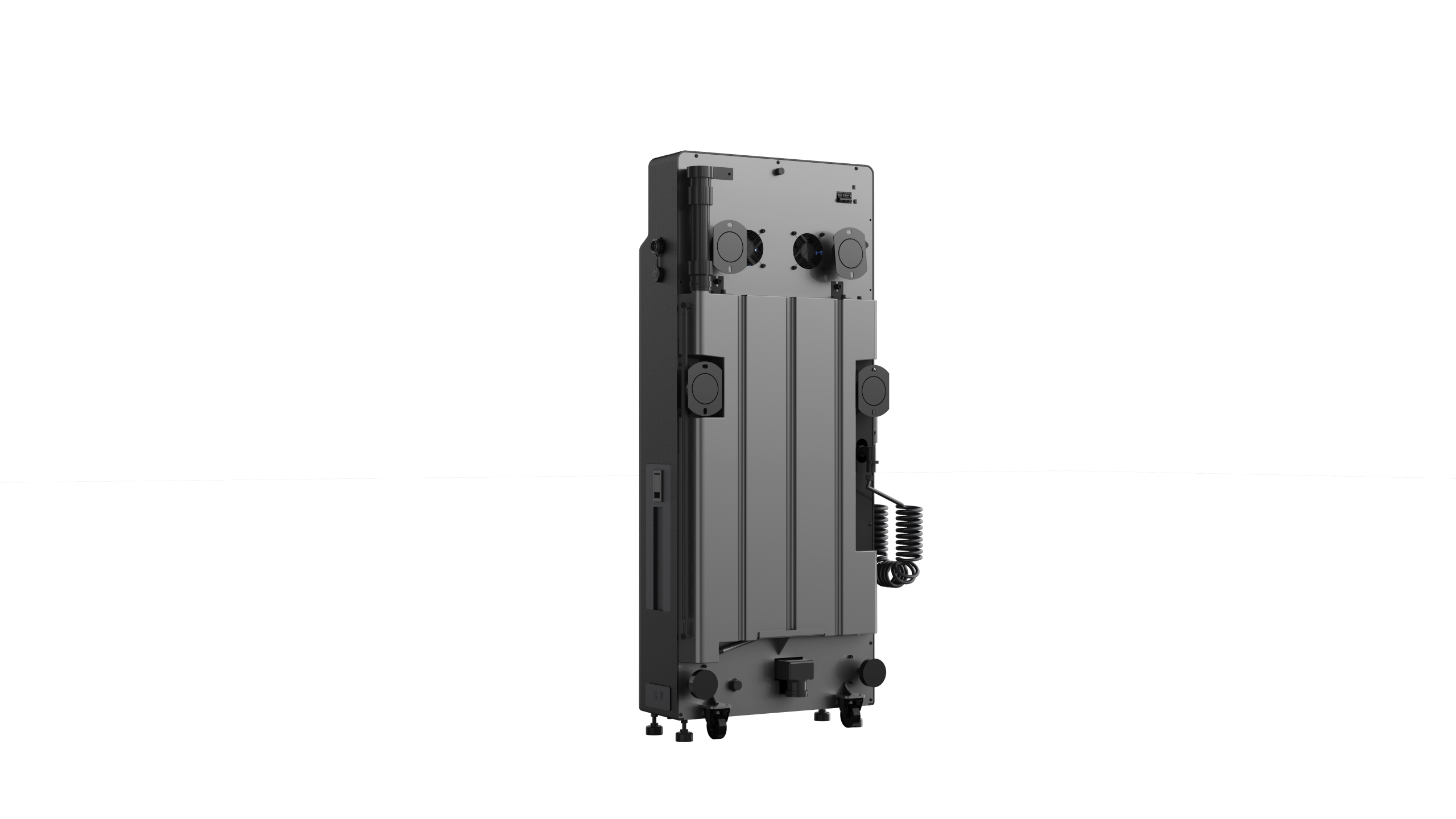

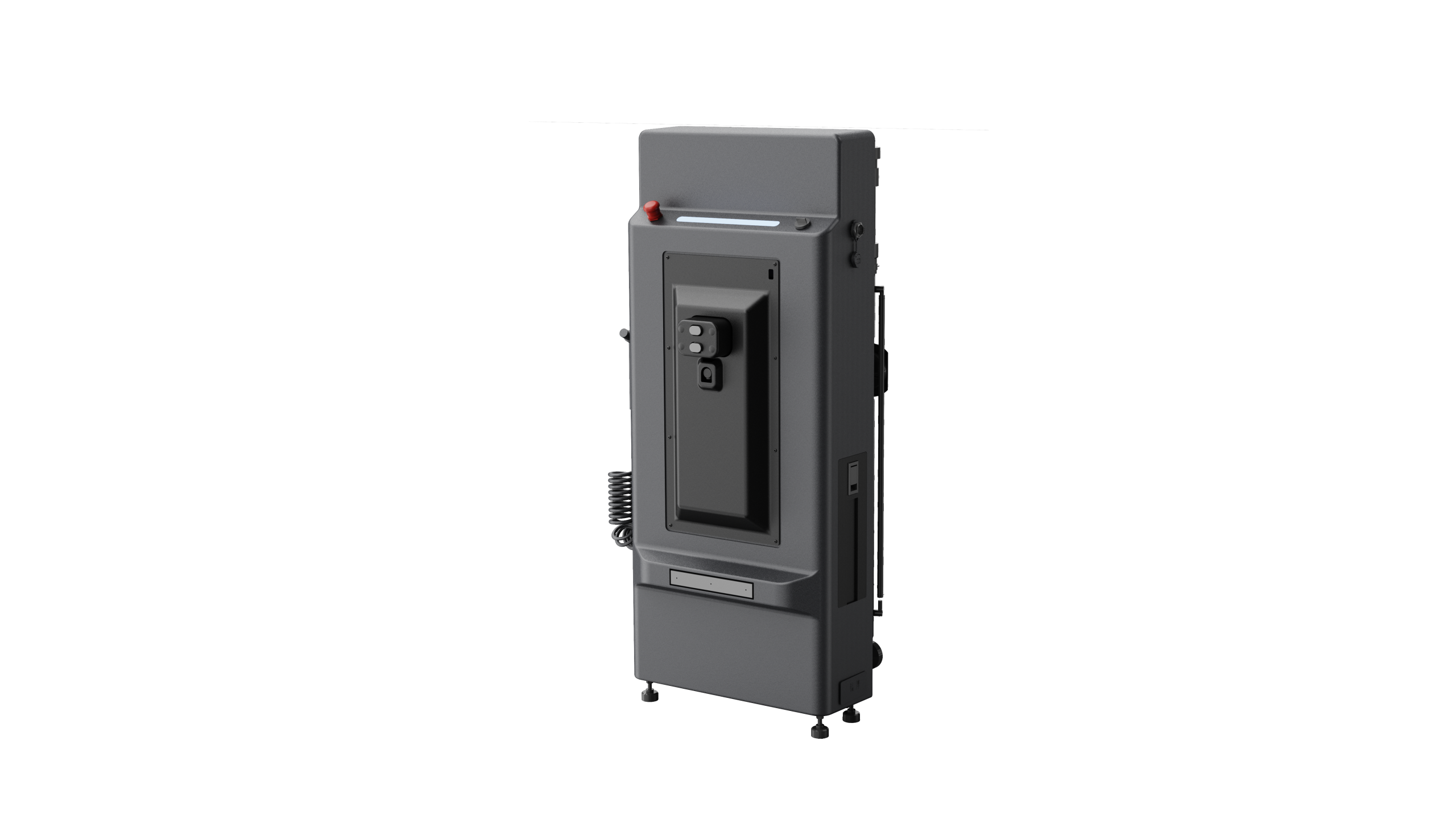

The automated workstation is exquisitely designed and consists of an automatic water supply device, an automatic drainage device, an automatic charging device, and an advertising unit.

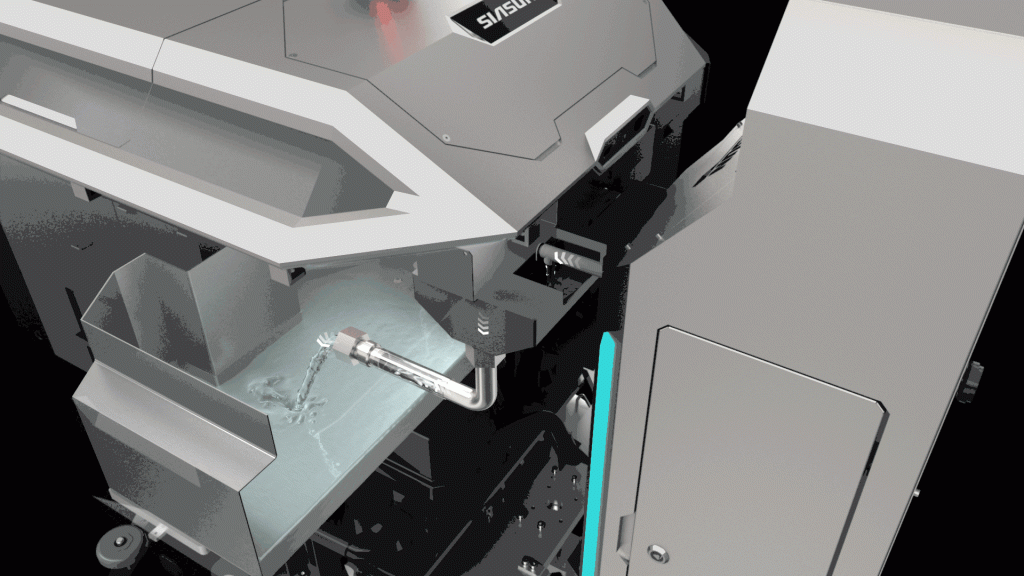

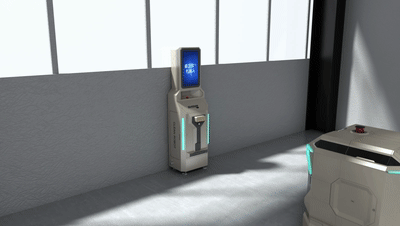

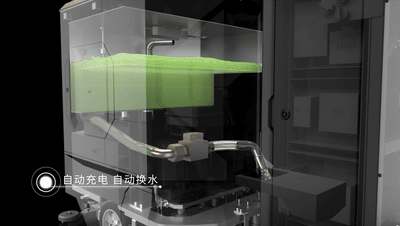

In normal operation, the cleaning robot equipped with an automated workstation will automatically trigger a return to the workstation and complete water change and charging operations when encountering issues such as a lack of water in the clean water tank, a full sewage tank, or a low battery level reaching a set threshold, without requiring manual intervention throughout the process.
When operating normally, a cleaning robot equipped with the automated workstation will automatically return to the workstation to exchange water and recharge whenever the clean water tank runs low, the sewage tank becomes full, or the battery level drops below the set threshold – all without any human intervention.
Installation environment requirements:
Indoor environment with nearby power outlets
There are water supply and drainage points
The docking space is not less than 8㎡
Technical parameters
| Parameters | Standard model |
| Dimensions (length x width x height) | 455×540×1200mm |
| Weight | 50kg |
| Input voltage | 220V |
| Output voltage | 24V |
| Push rod stroke | 100mm |
| Charging head telescopic stroke | 40mm |
| Water pressure of incoming water source | 0.1MPa≤X≤0.6MPa |
| Cleaning agent capacity | 2.5L |
| Charging current | 50A |
| Power cord length | 2m |
