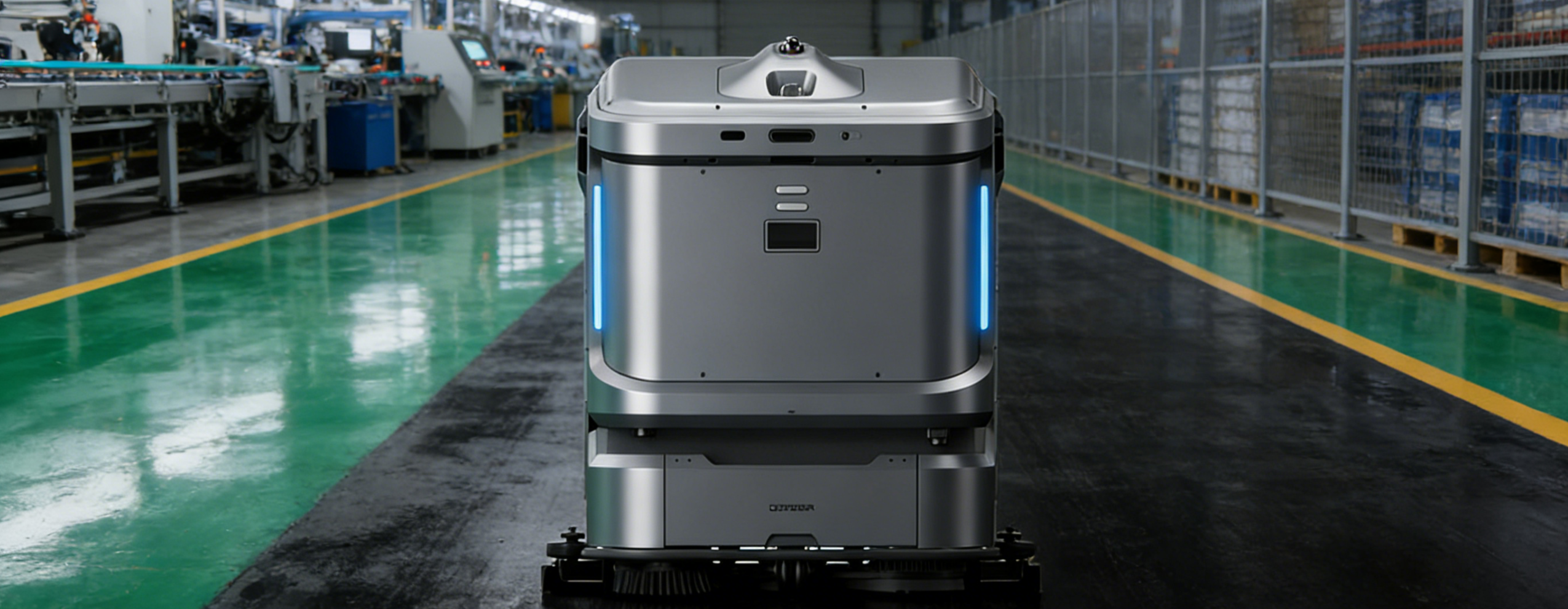

| Product Name: | QD750F |
| Application Fields: | Industrial workshop |
| Deal with pollutants: | Oil stains, carbon powder, iron chips, dust, and tire tracks… |
| Introduction: | Intelligent products specifically designed for industrial cleaning. Utilizing industrial-grade SLAM technology, they offer precise positioning and strong robustness. Equipped with a powerful cleaning unit, they can handle common industrial contaminants such as dust, oil stains, and AGV tracks, and support co-linear operation with AGVs. The IoT module equipped allows for control of elevators and platform screen doors, achieving broader cleaning coverage. |

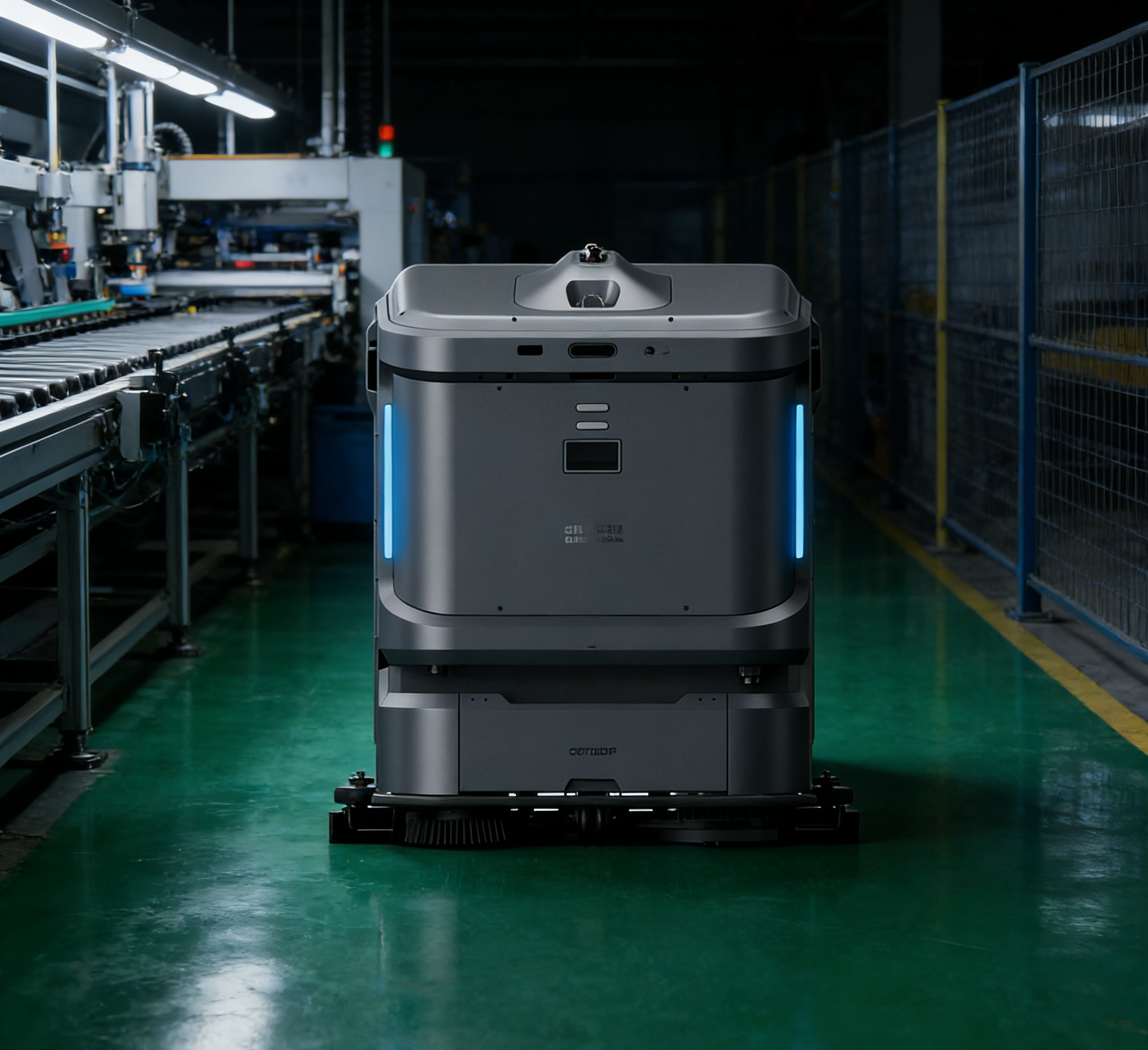

SOCL Industrial Cleaning Robot
The SOCL industrial cleaning robot is a smart robot tailored for cleaning tasks in the industrial sector. It integrates over 20 years of control, navigation, and safety sensing technology from SIASUN Robotics, effectively addressing challenges faced by traditional industrial cleaning, such as high labor intensity, low intelligence, poor real-time performance, and impact on production efficiency. It provides an intelligent, efficient, and cost-effective alternative solution, especially suitable for use in smart unmanned factories, IC equipment workshops, new energy battery production workshops, and unmanned warehouses.

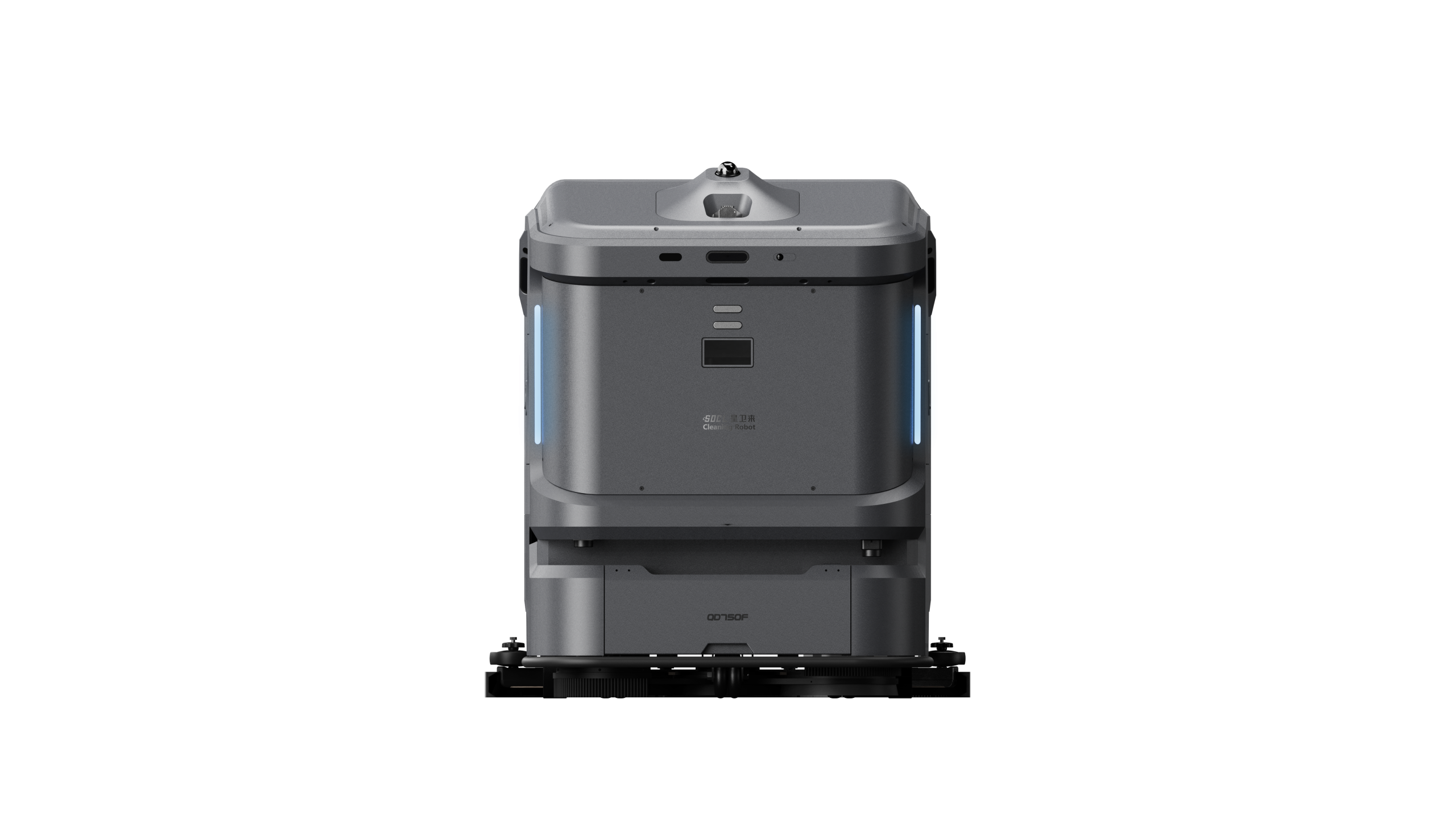

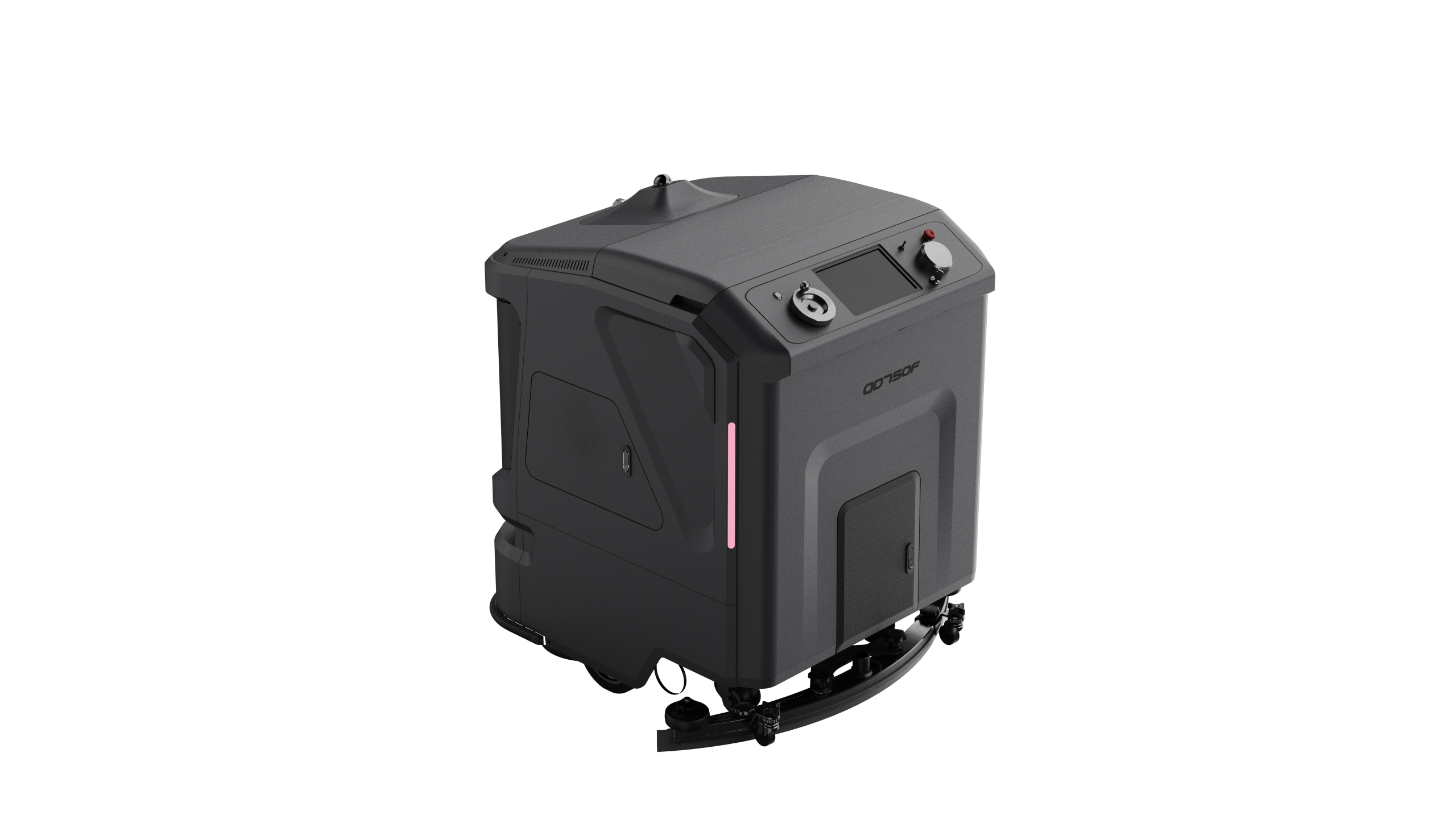

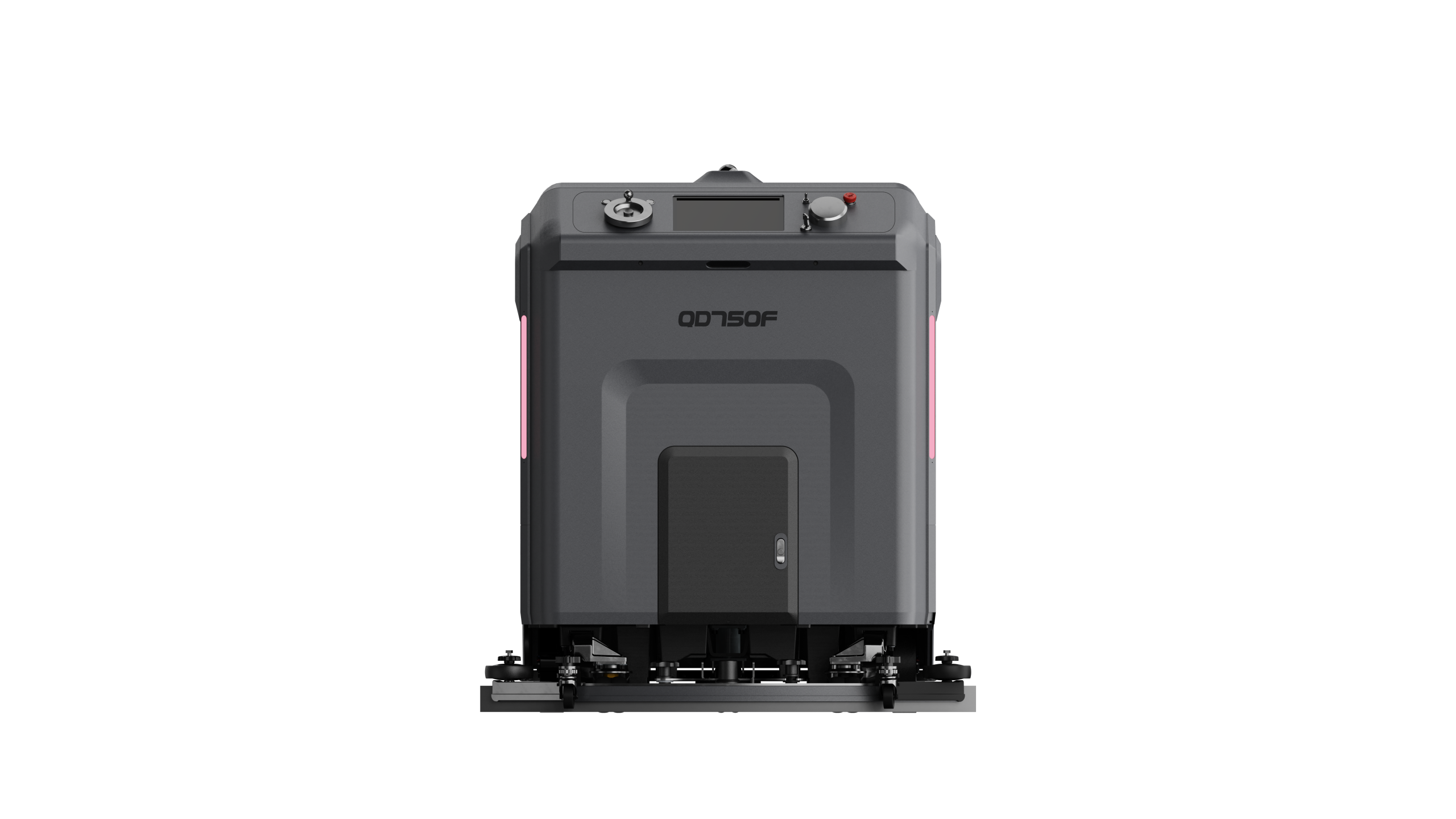

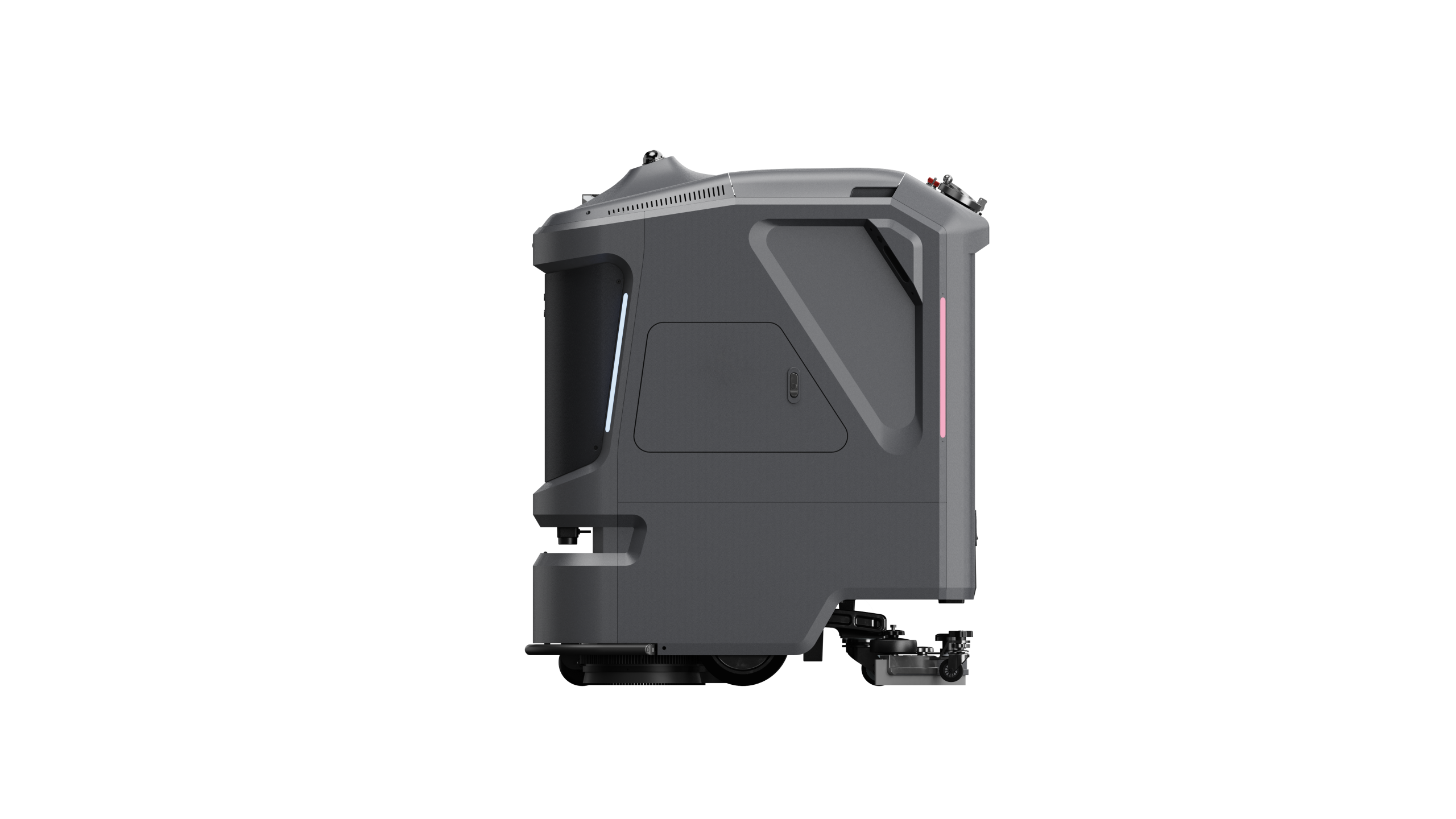

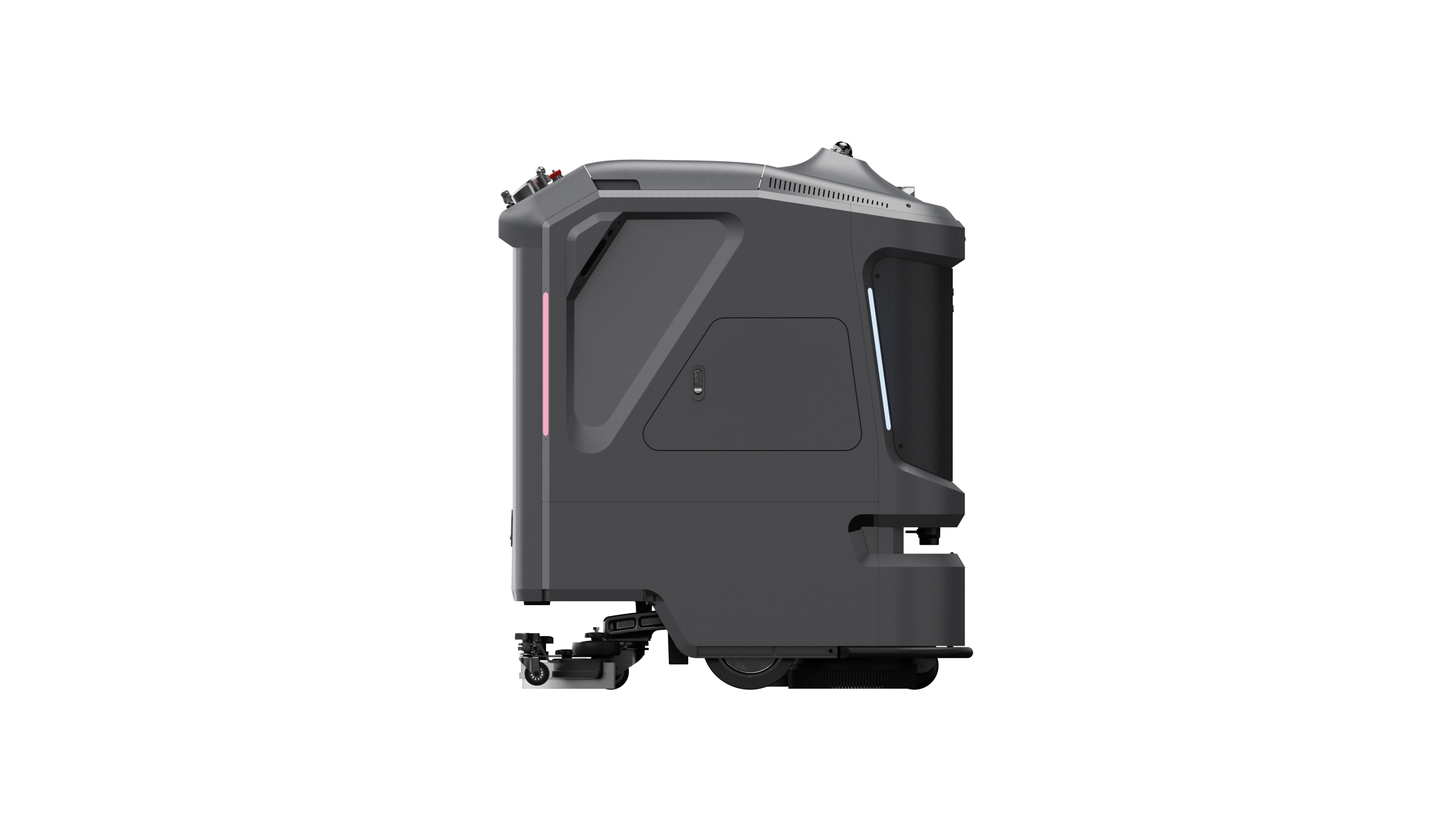

Product image
Technical highlights
Joint scheduling Data reporting
The SOCL cleaning robot can be centrally managed by a mobile robot scheduling system, and its operational data is fed back to the supervisory system in real-time.
Smart IoT Unimpeded
Through the IoT module, the robot can interact with rolling shutter doors, freight elevators, electric sliding doors, etc. in the workshop to complete cross-regional cleaning tasks within the factory.
One-click deployment Self-built map
Based on SIASUN’s proprietary industrial-grade SLAM navigation technology, it features one-click mapping, rapid deployment, and strong environmental adaptability and robustness.
Safe and reliable Dynamic detection
Based on a powerful autonomous obstacle avoidance unit, the robot can dynamically perceive pedestrians and obstacles, ensuring the safety of itself and the surrounding environment.
Edge cleaning Autonomous avoidance
Based on a powerful mobile chassis, the Socl cleaning robot can achieve a zero turning radius, easily navigating narrow passages, corners, and other hard-to-reach cleaning areas.
Active update Cleaning area
The robot can dynamically detect temporarily stacked goods, temporarily prohibited areas, and passing pedestrians, and proactively update the cleaning area.

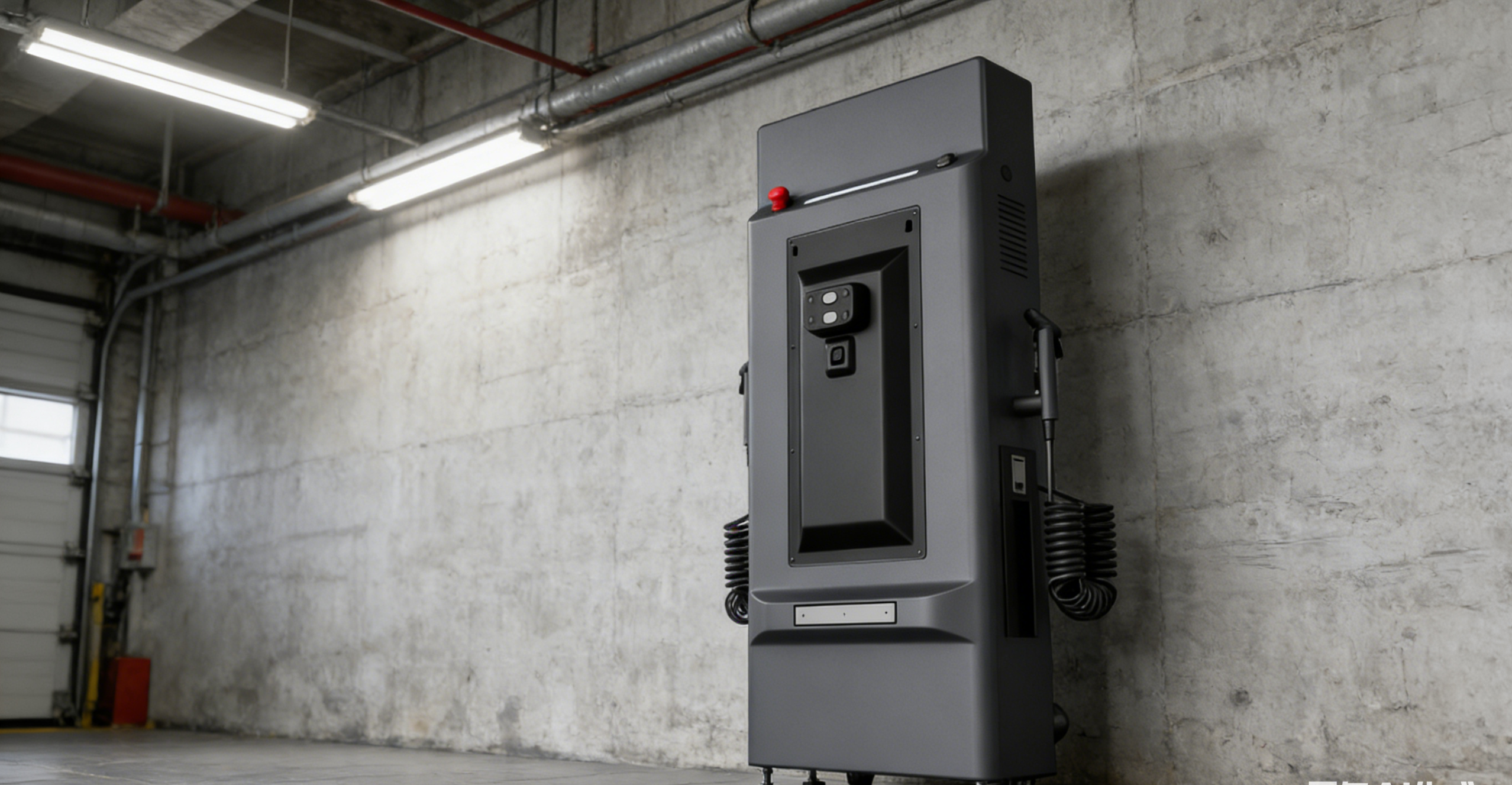

Automatic charging Automatic water change
An automated workstation can be equipped for automatic water filling, sewage discharge, and automatic charging operations, eliminating the need for manual intervention throughout the process.
Professional Services After-sales service guarantee
Our global pre-sales and after-sales service network ensures on-site inspection services within four hours, backed by comprehensive after-sales support.
Technical parameters
| Specifications | Parameter |
| Dimensions (length/width/height) | 980×895（1000）×1130(mm) |
| Weight (empty load) | 220kg |
| Cleaning width | 710mm |
| Capacity of clean/sewage tank | 90L/80L |
| Maximum speed | 1.2m/s |
| Running direction | Forward/backward/turn/spin |
| Turning radius | Can spin in place |
| Minimum walking channel width | 1200mm |
| Width of the rotary channel | 1400mm |
| Safety protection | Laser+vision+ultrasound+anti fall |
| Climbing angle | 8° |
| Maximum cleaning efficiency | 2200㎡/h |
| Automatic charging duration | <2h |
