| Product Name: | QD450E |
| Suitable scenarios: | Industrial workshops, commercial settings |
| Introduction: | The QD450E utilizes the industrial-grade SLAM positioning technology independently developed by SIASUN Midas Touch, offering enhanced positioning accuracy and robustness, and supporting rapid deployment. Its cleaning unit design, featuring side brushes and disc brushes, is more suitable for stain cleaning tasks in industrial settings. The robot can be equipped with various modular units to maximize return on investment. The QD450E can collaborate with the QD750F to achieve broader cleaning coverage within the smart workshop. Both devices are compatible with each other’s environmental maps and operation routes, allowing them to share the same workstation. This significantly reduces the deployment and machine pickup costs for customers on-site. |

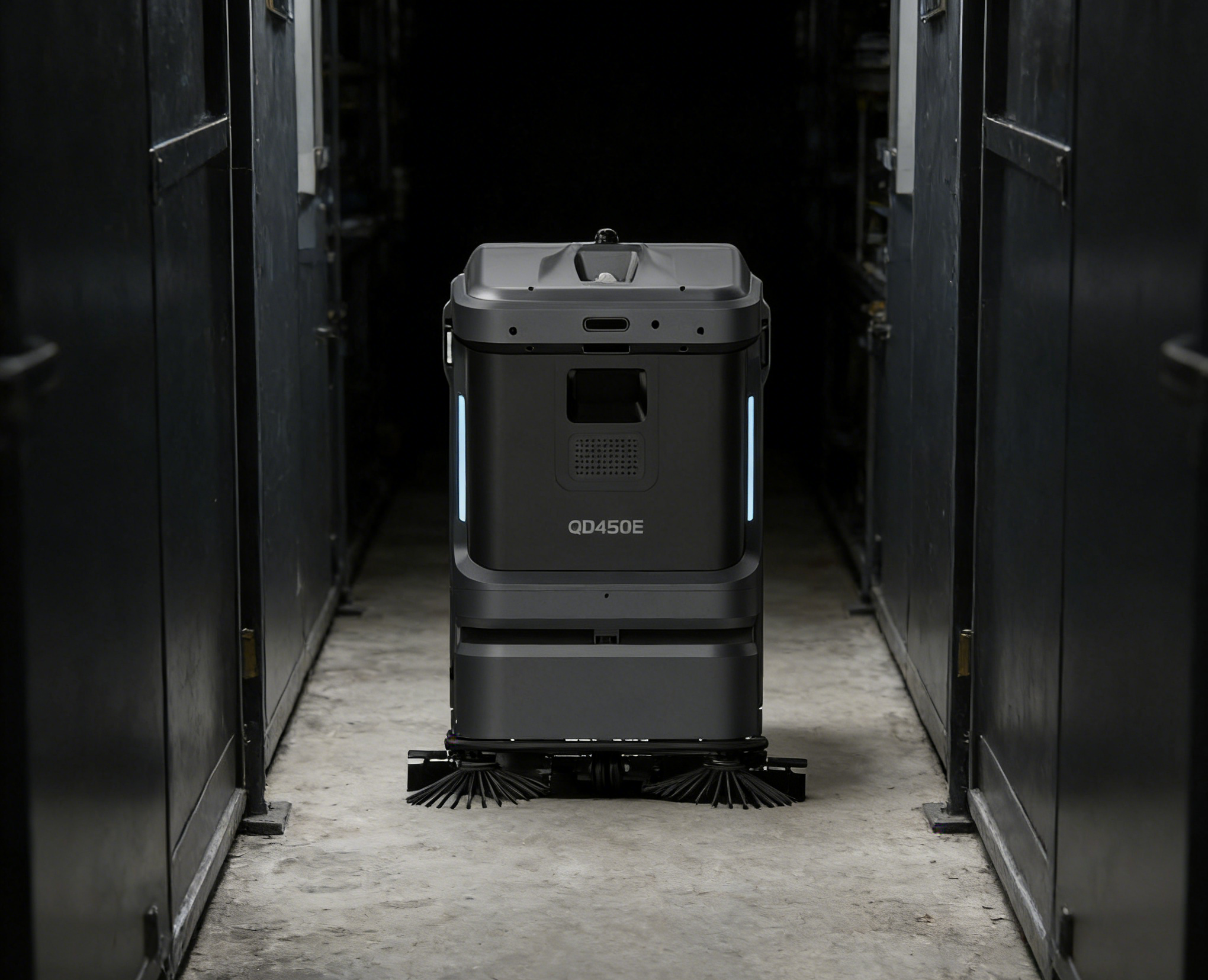

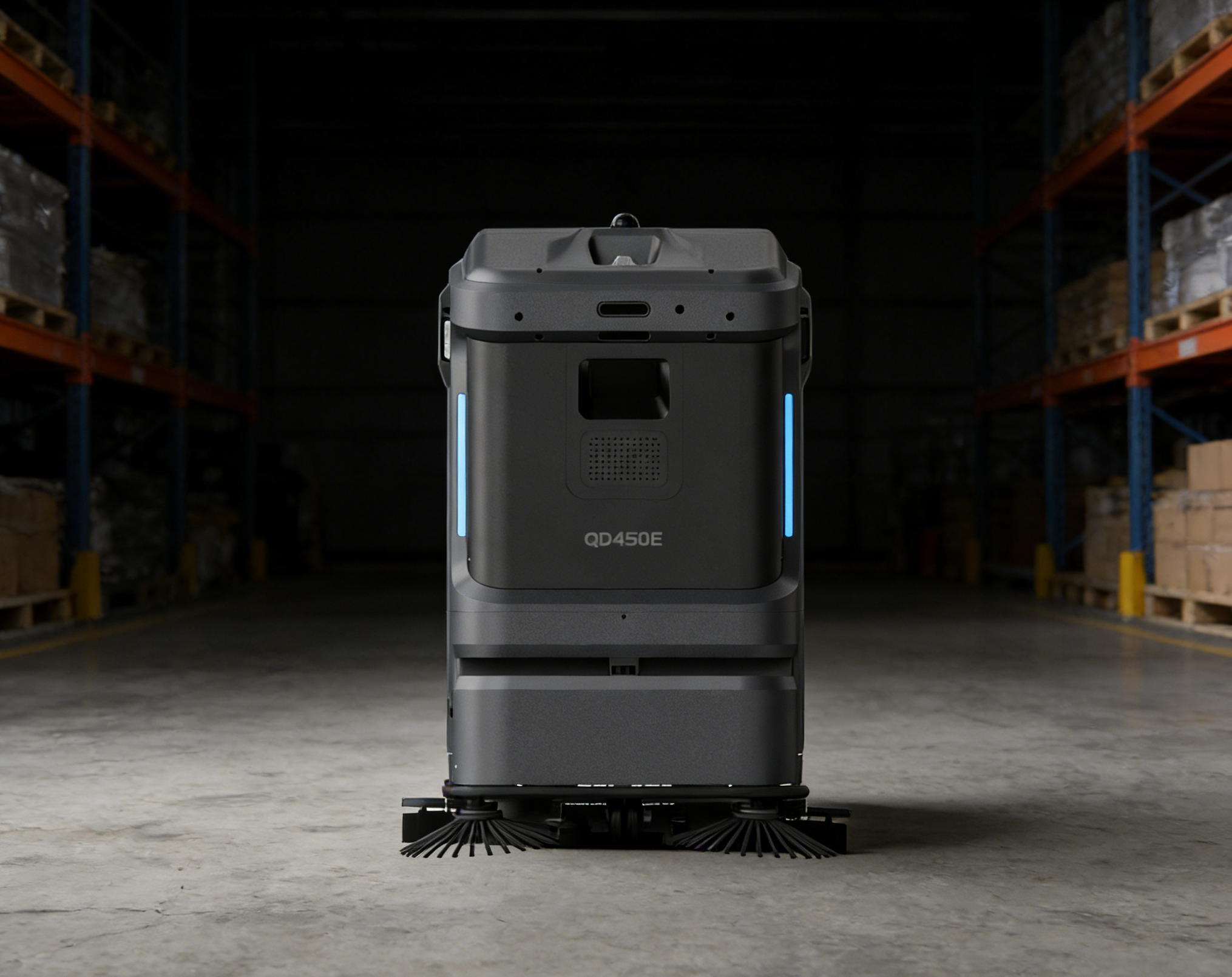

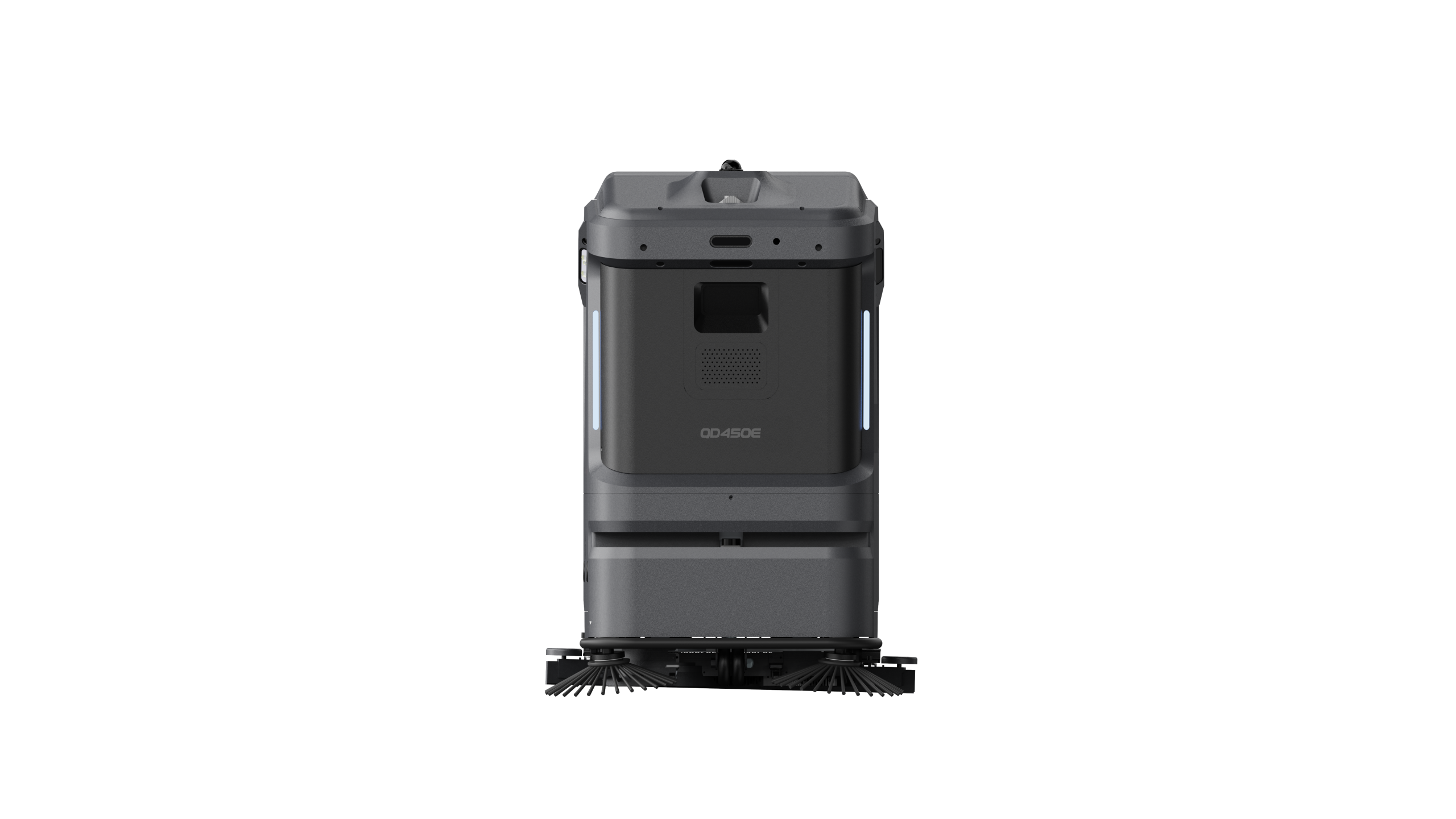

QD450E Cleaning robot
The QD450ESOCL industrial cleaning robot is a smart robot tailored for the industrial cleaning sector. It is particularly suitable for intelligent production workshops with small cleaning areas and numerous narrow alleys. It is also well-suited for intelligent cleaning tasks in various industrial settings, such as visitor passages, office areas, lobbies, corridors, and exhibition halls.
Product Features
Meet the needs of smart workshops
Compact body + long-lasting water and power supply
0 dead angle coverage
The side brush design ensures 0 dead zone coverage for areas such as walls and corners.
Information system integration
It can integrate with mainstream AGV/AMR and other intelligent devices for collaborative operations.
Deep cleaning unit
Meet the cleaning needs of stubborn stains
Unmanned intelligent operation
Automatically executes scheduled tasks, supports integrated water and electricity management for automatic watering, draining, and charging. Utilizes laser SLAM navigation and environmental modeling; supports autonomous path planning, automatic positioning, and navigation; capable of automatically scheduled suction, sweeping, and mopping, supports switching between floor scrubbing and dust pushing modes (dust pushing version).
Upper system linkage*
The SOCL cleaning robot can interface with the central control system to facilitate feedback on robot operation data, issue and monitor cleaning tasks, and features a linkage interface for elevator control. It also provides an interface protocol.
Technical parameters
| Specifications | Parameters |
| Dimensions (length/width/height) | 860×650（790）×1100（mm） |
| Weight | 150KG |
| Cleaning width | 485mm |
| Capacity of clean/Sewage tank | 60L/50L |
| Maximum speed | 1.2m/s |
| Running direction | Forward/Backward/Turn/Spin |
| Minimum aisle width | 1100mm |
| Width of rotary passage | 1300mm |
| Safety protection | Laser + Vision + Anti-fall + Edge Detection |
| Maximum cleaning efficiency | 1400㎡/h |
| Fast charging | <1h |
